The Technomad Berlin

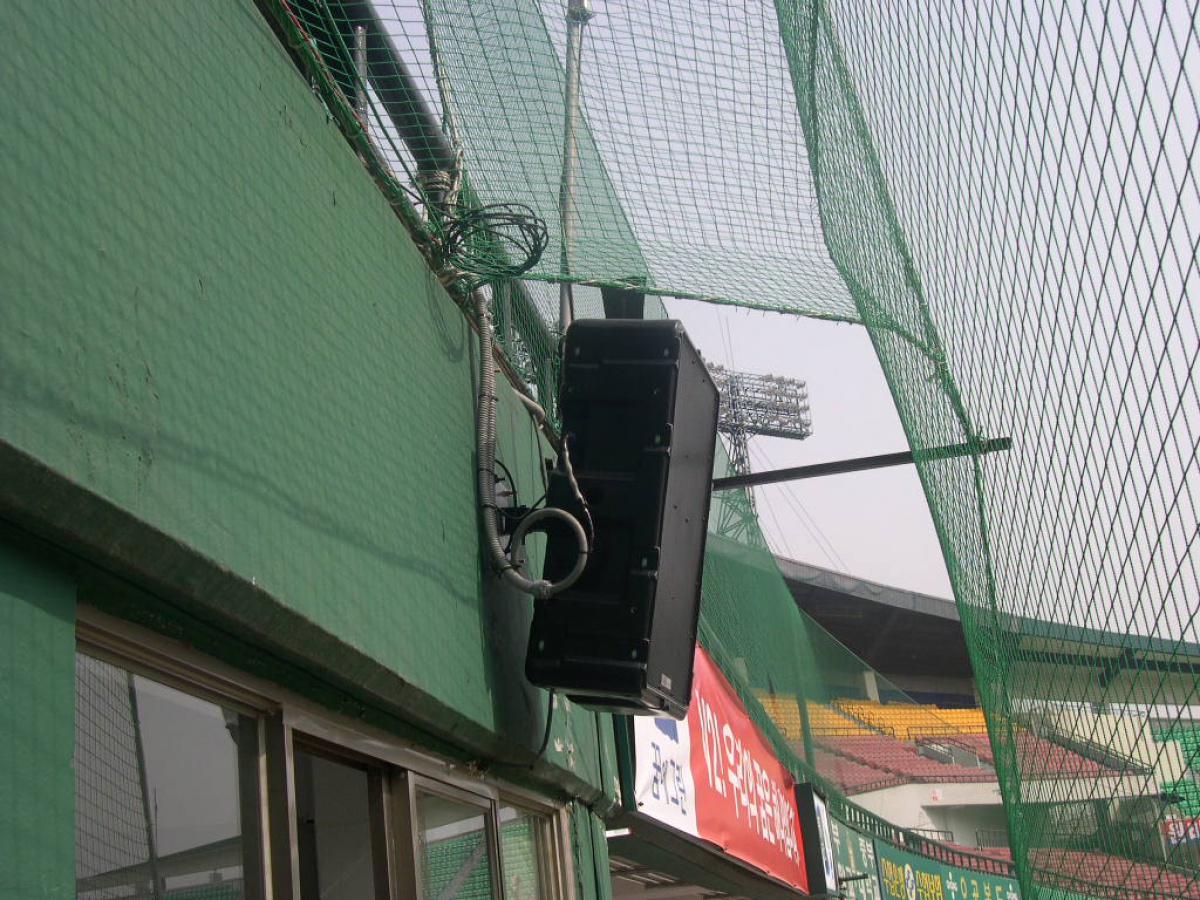

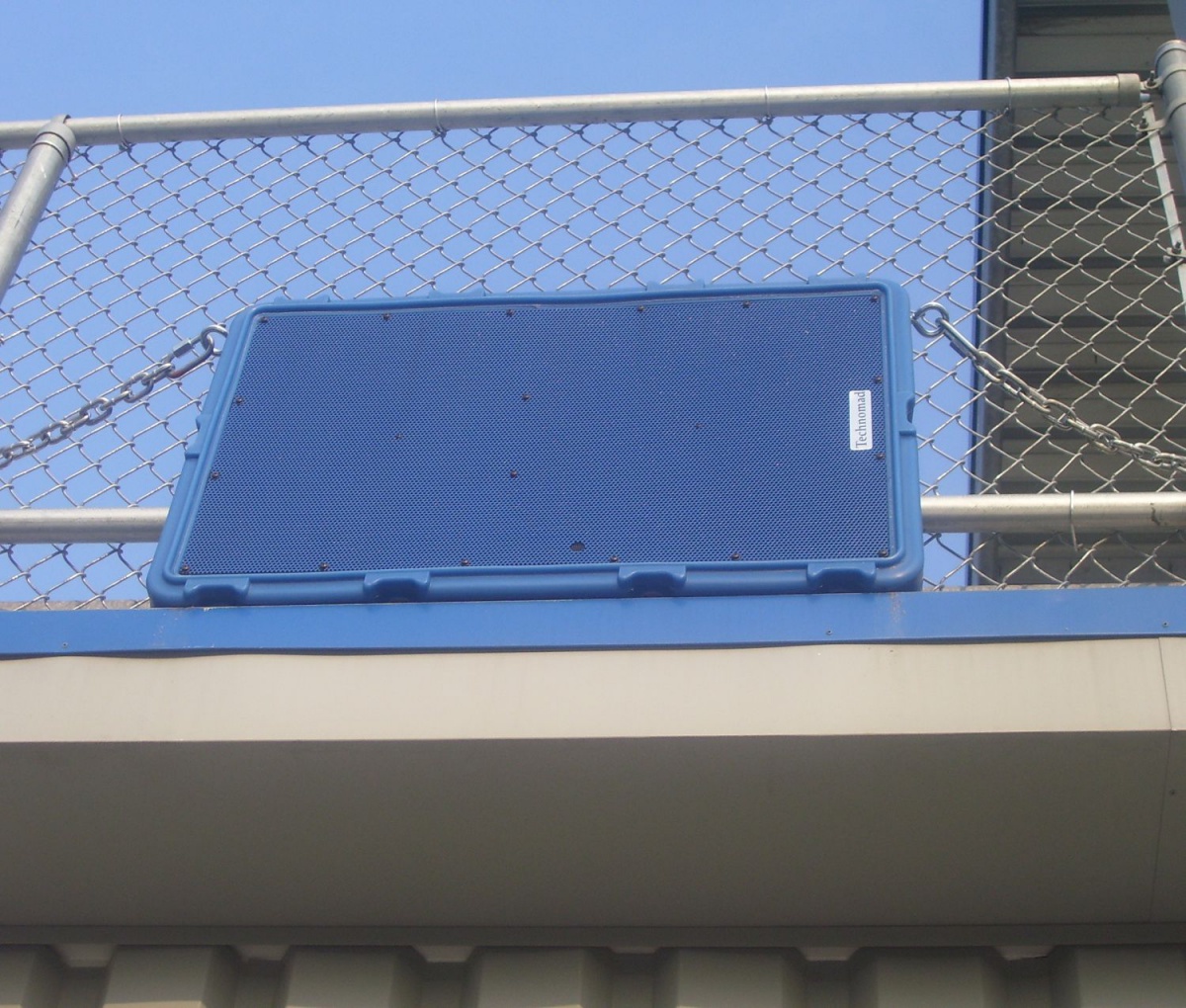

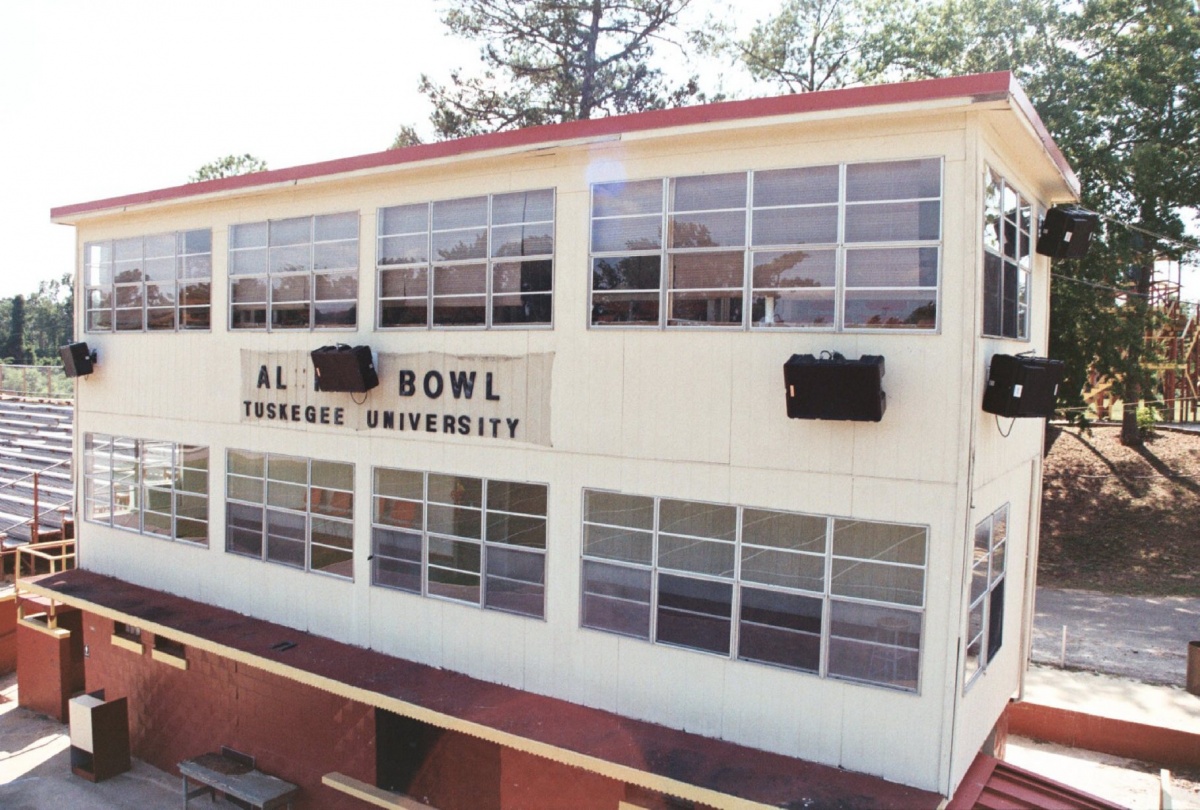

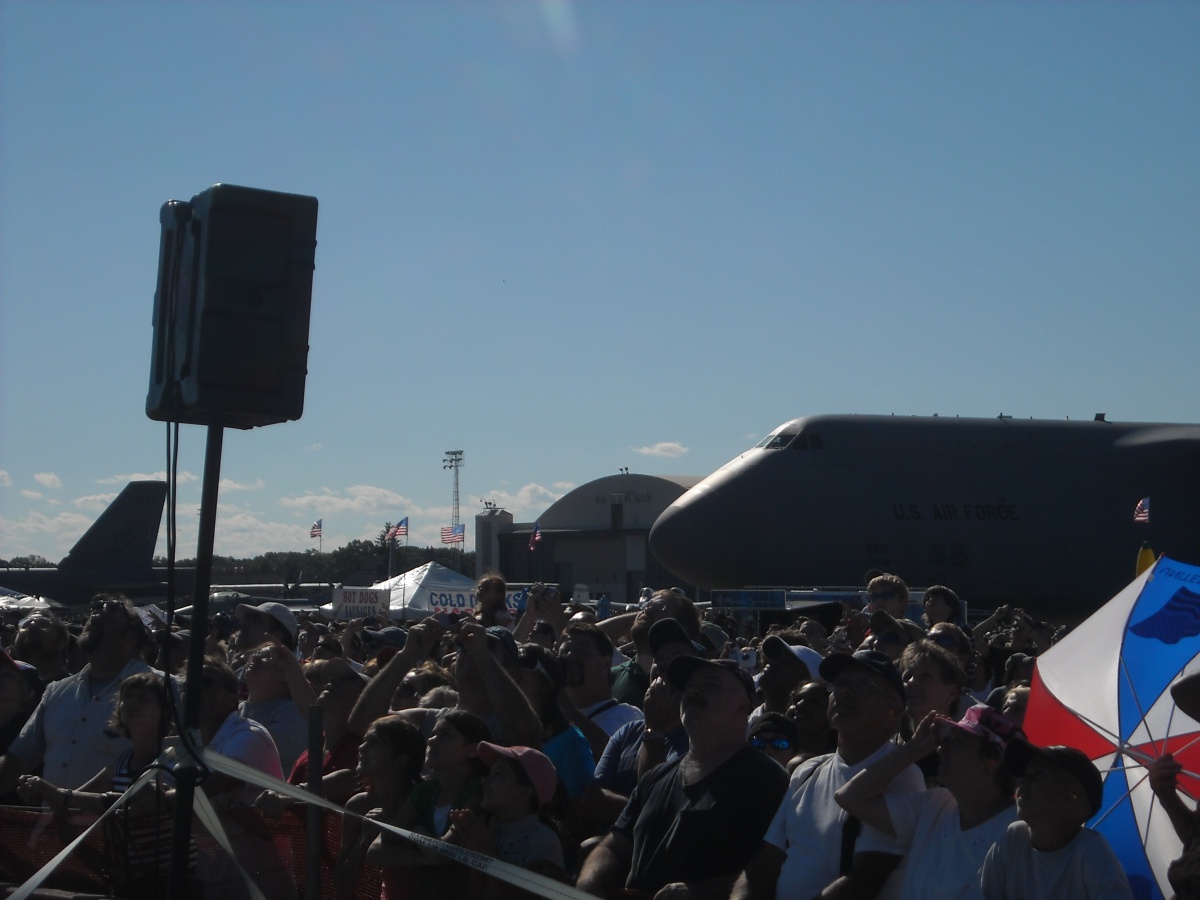

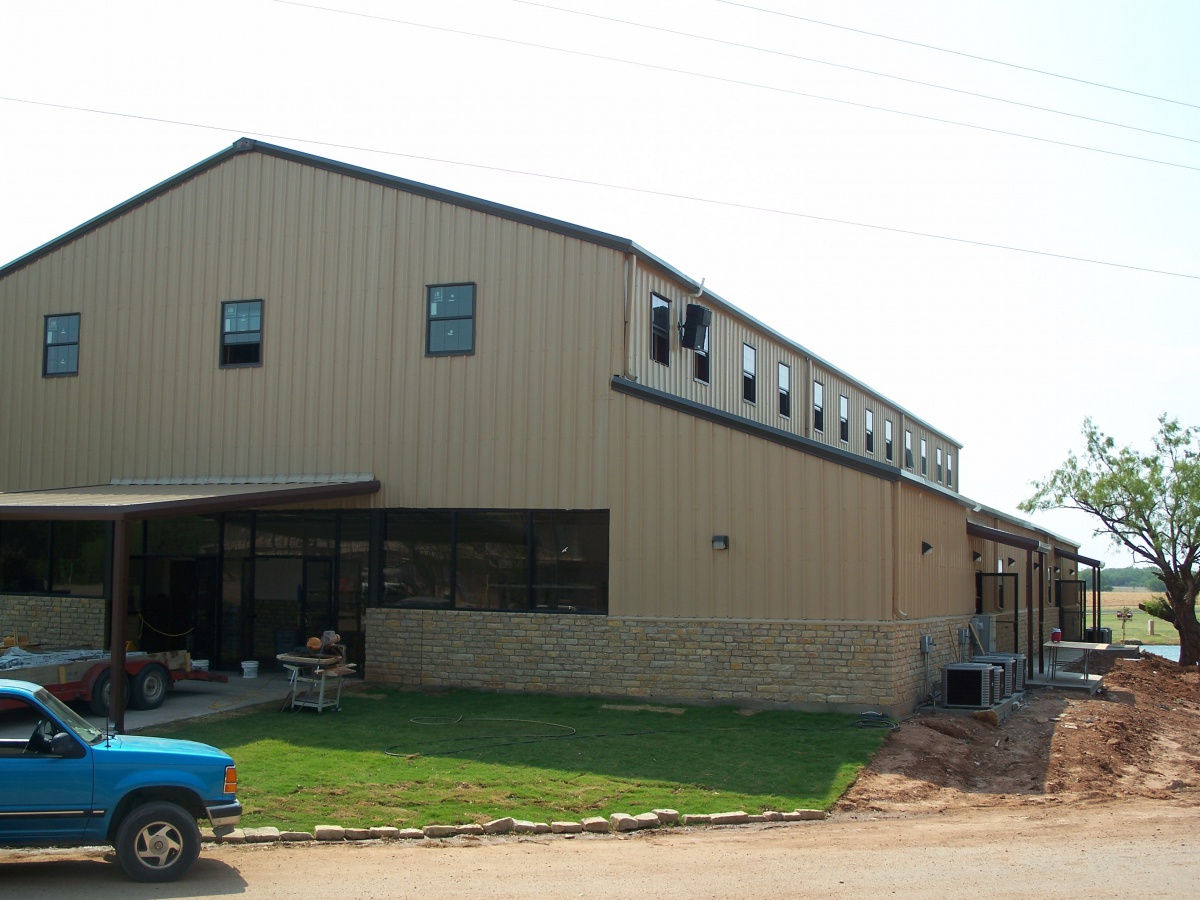

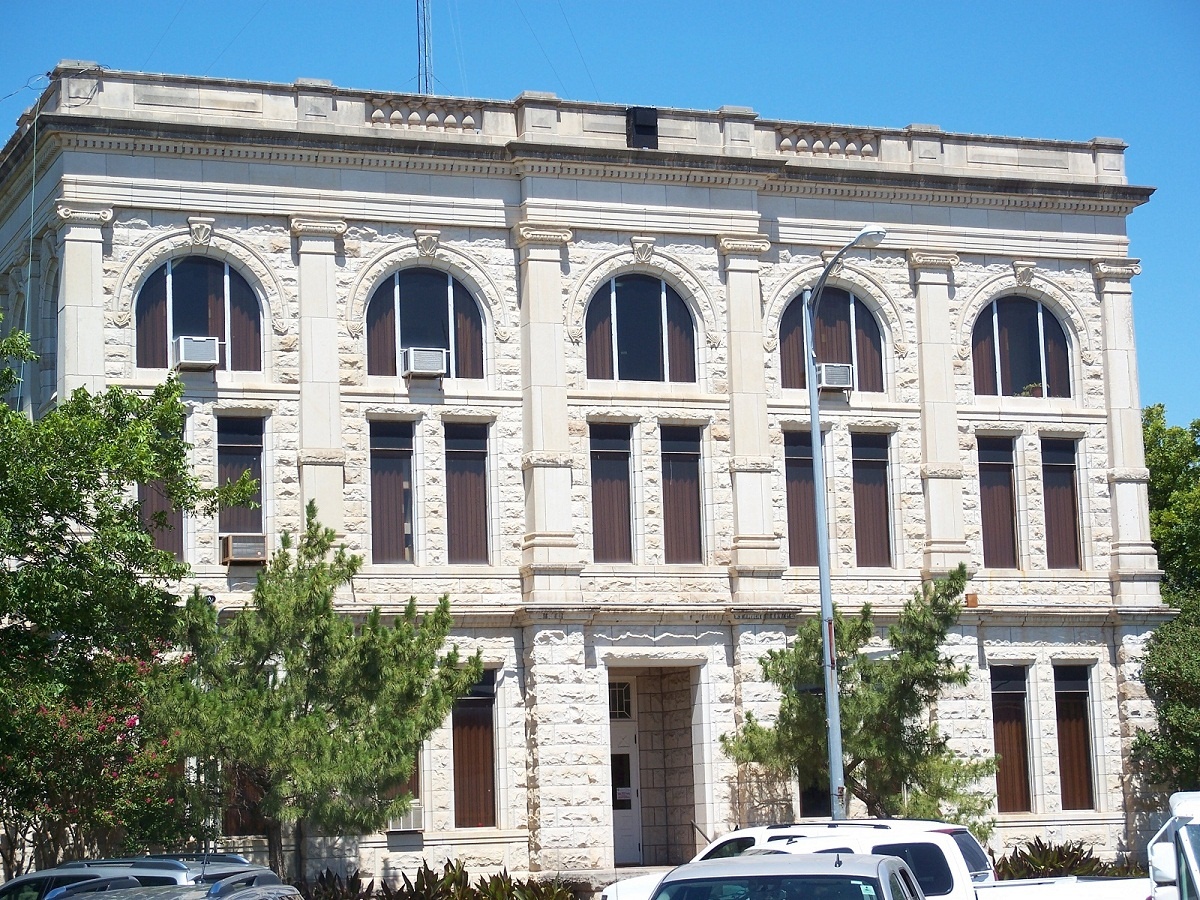

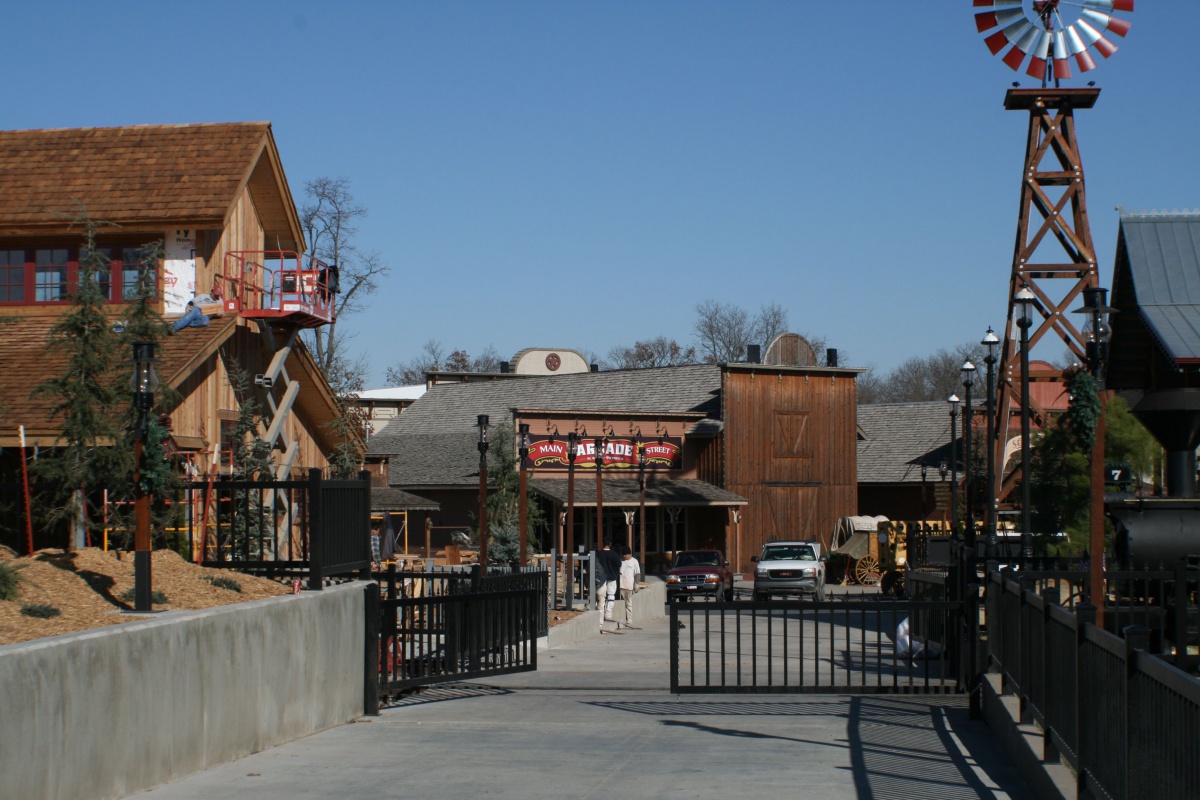

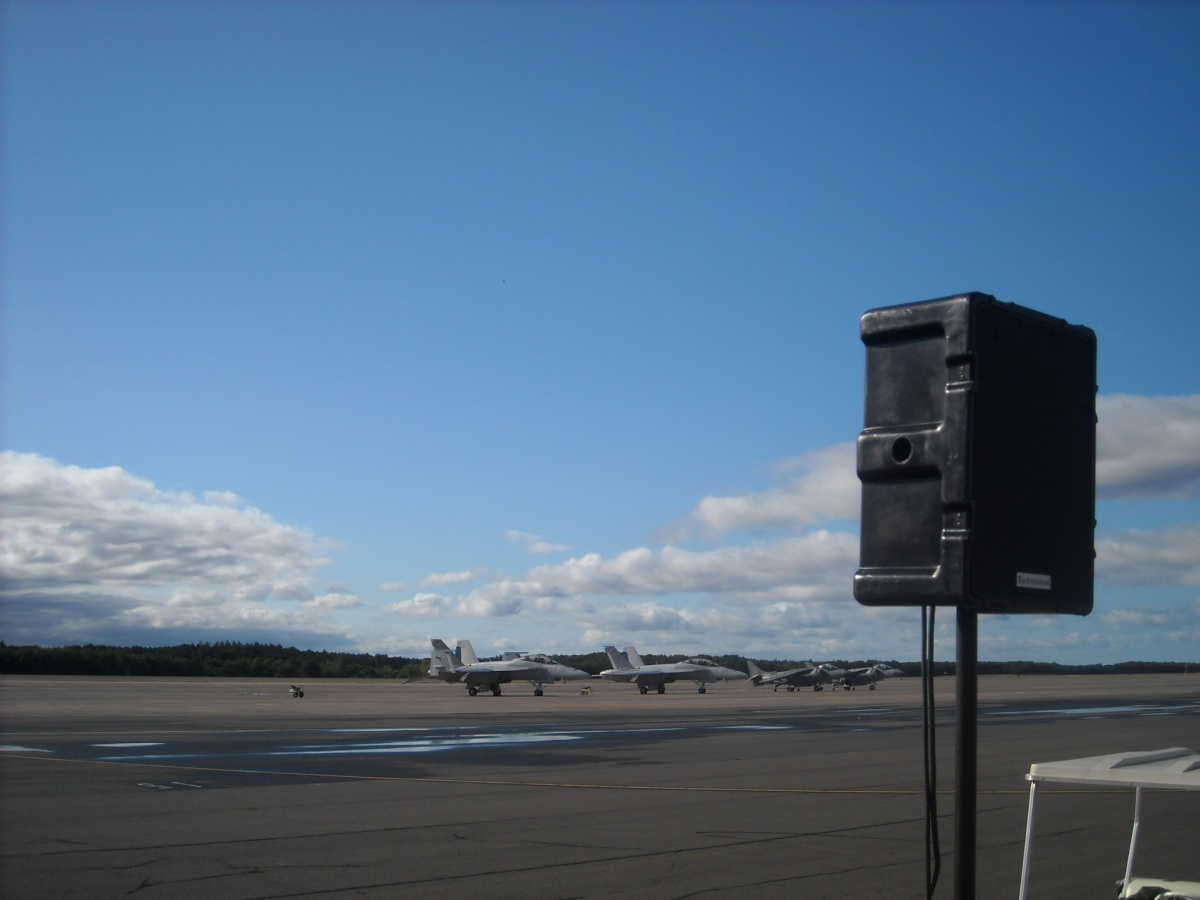

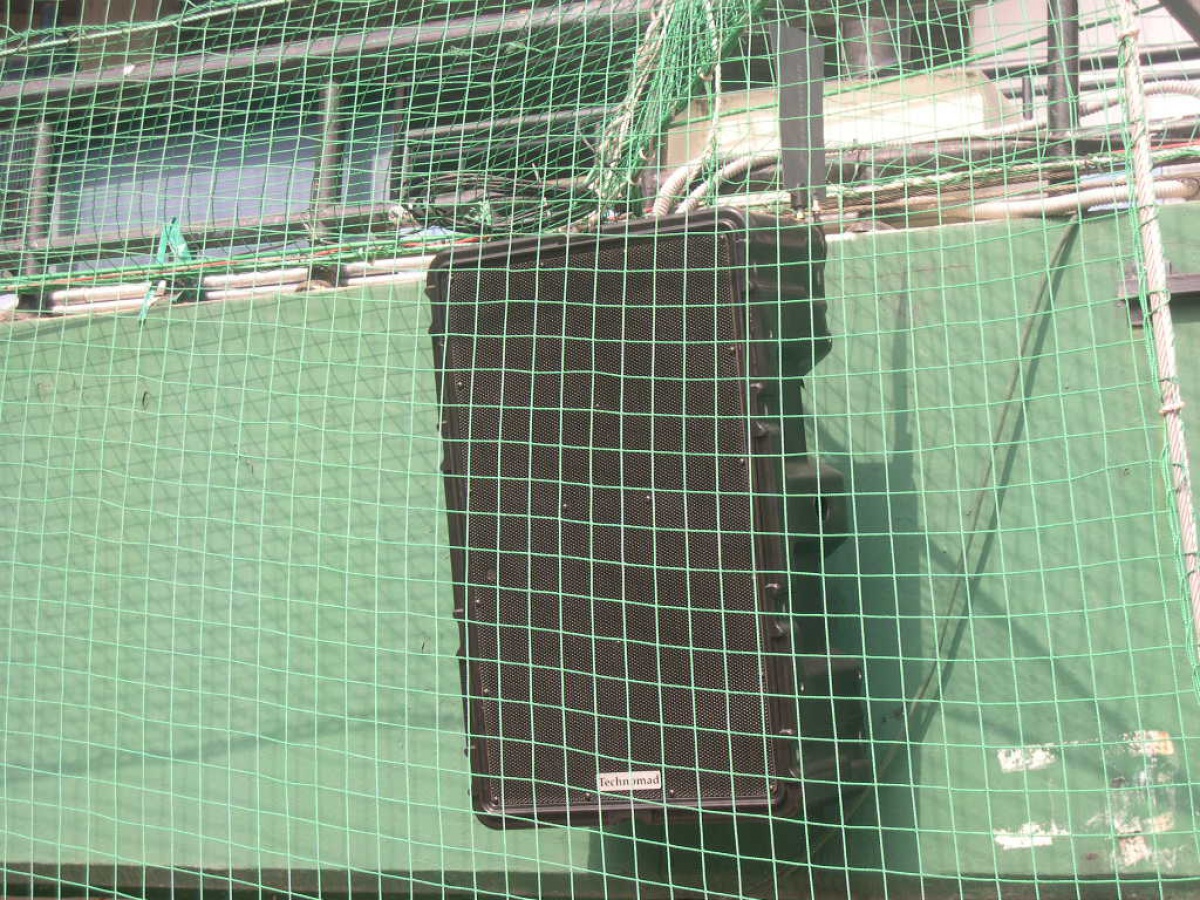

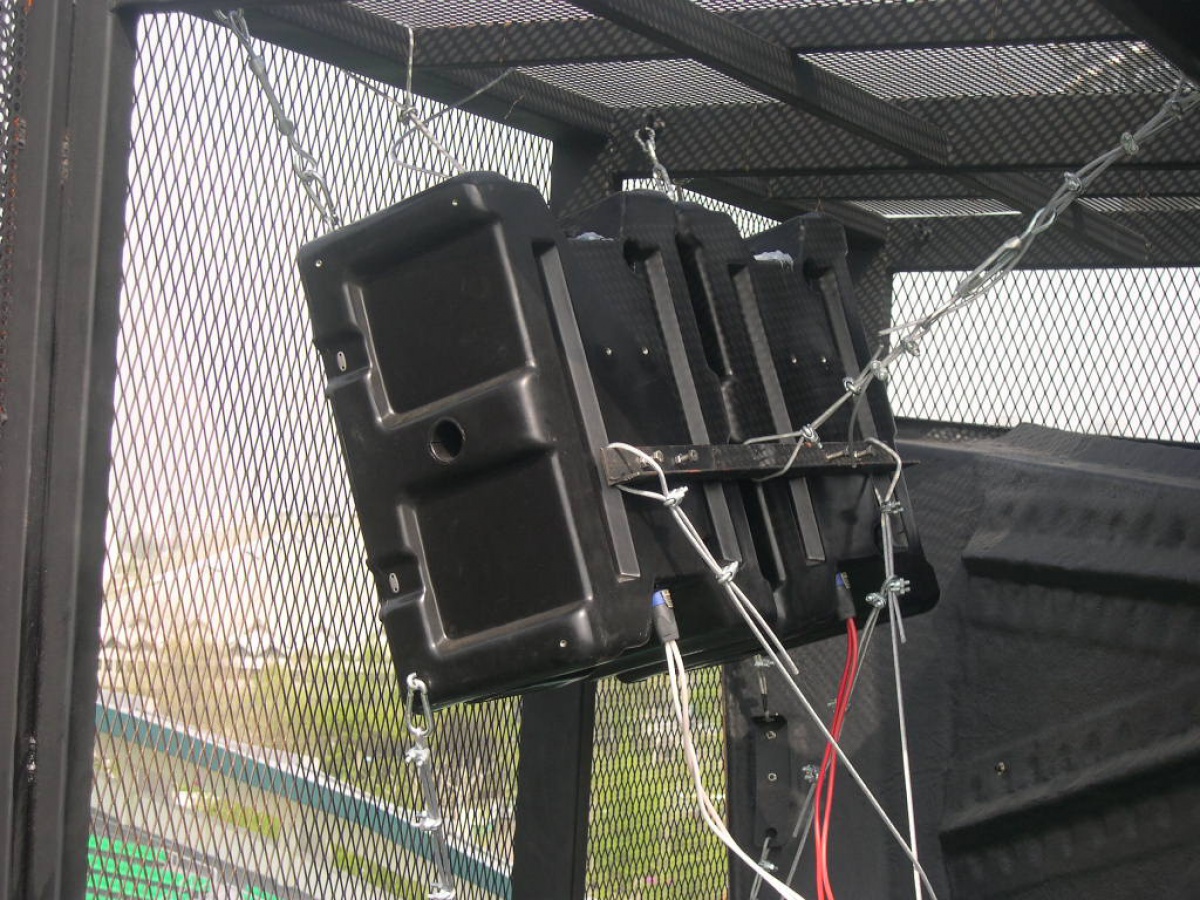

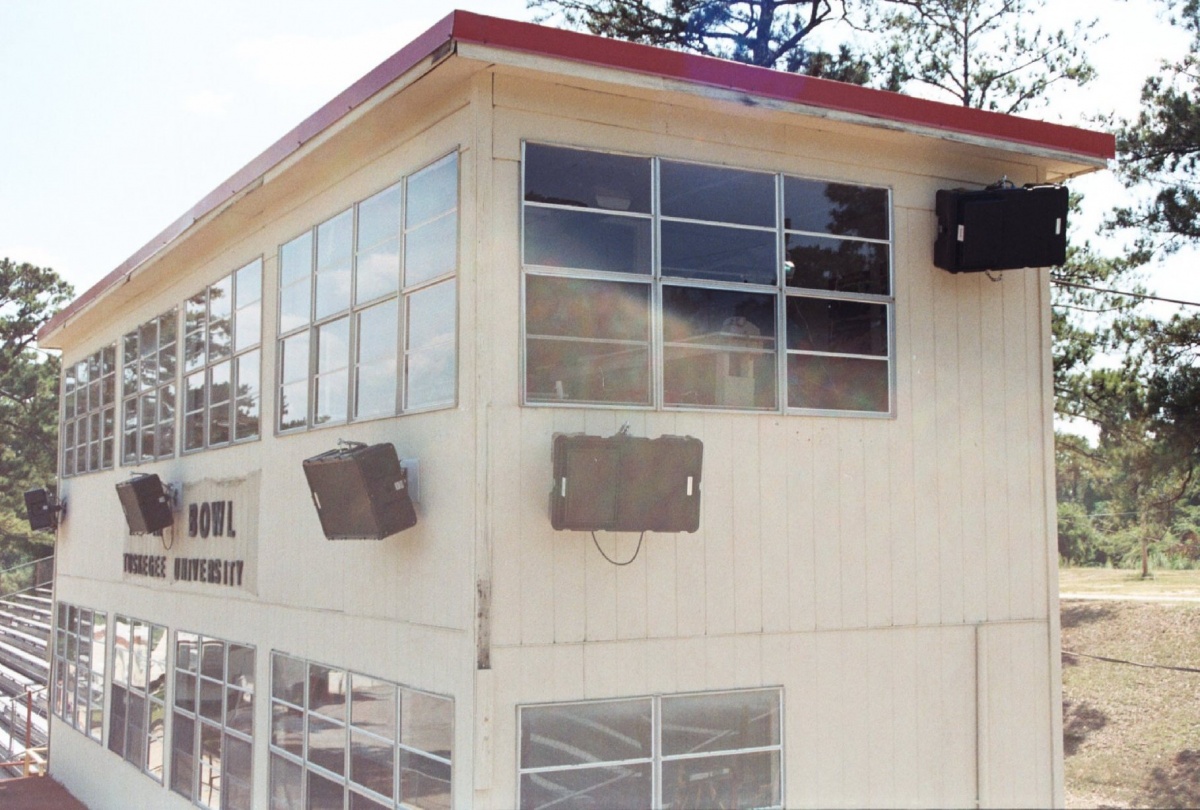

Our most powerful full range model, the Berlin offers provides articulate, high SPL output by combing a best in class 2” compression driver with a powerful 15” LF driver in a shallow, low-profile cabinet. With two-axis flypoints and yoke mount points, plus stand mount sockets on the bottom and sides and rear inserts for a wall or pole mount, the Berlin can easily be installed in a variety of ways. Three layer WeatherTech™ grill protects the also weatherproof driver from the worst the elements can offer.  120º x 120º dispersion, high efficiency, and excellent power handling make the Berlin an unbeatable choice for sports audio systems, retail and architectural installations, performance spaces, and much more.

[ See matching OSLO 18 subwoofer ]
Size: 32.9″x 20.6″ x 10.5″
Weight: 90 lbs
Freq. Response: 50 Hz – 20 KHz (+/- 2 dB)
Sensitivity: 100.8 dB SPL (1W/1M, swept sine)
Continuous Power: 900 Watts (based on EIA test 426B)
Max Continuous SPL: 130.3 dB SPL
Dispersion: 120 x 120
Impedance: 8 Ohms (nominal)
Connector: 2 x Speak-On NL4MP
HF Driver: 2″ horn-loaded compression driver
LF Driver: 15″ custom cone driver
Options: » 14 Available Colors (black standard)
» Tour Package (gasketed lid, handles for transport)

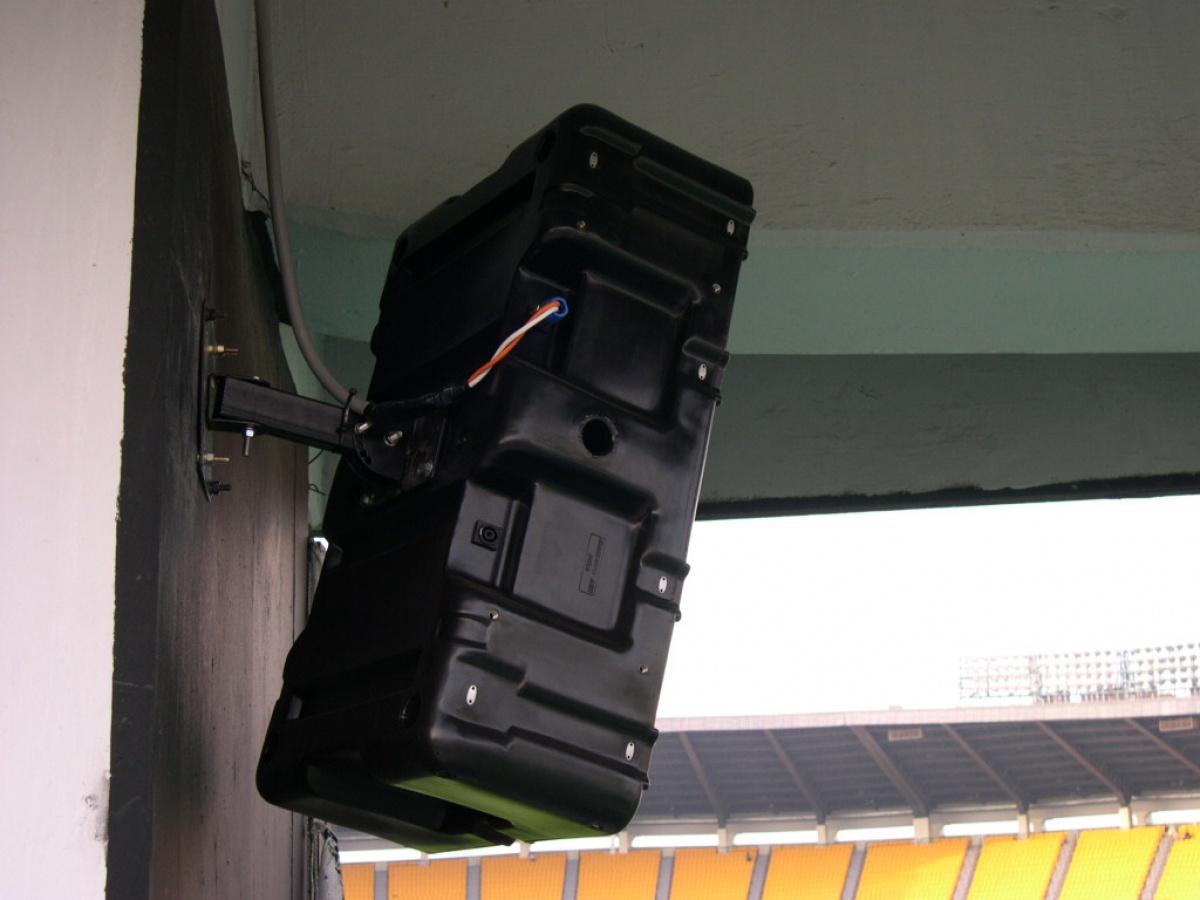

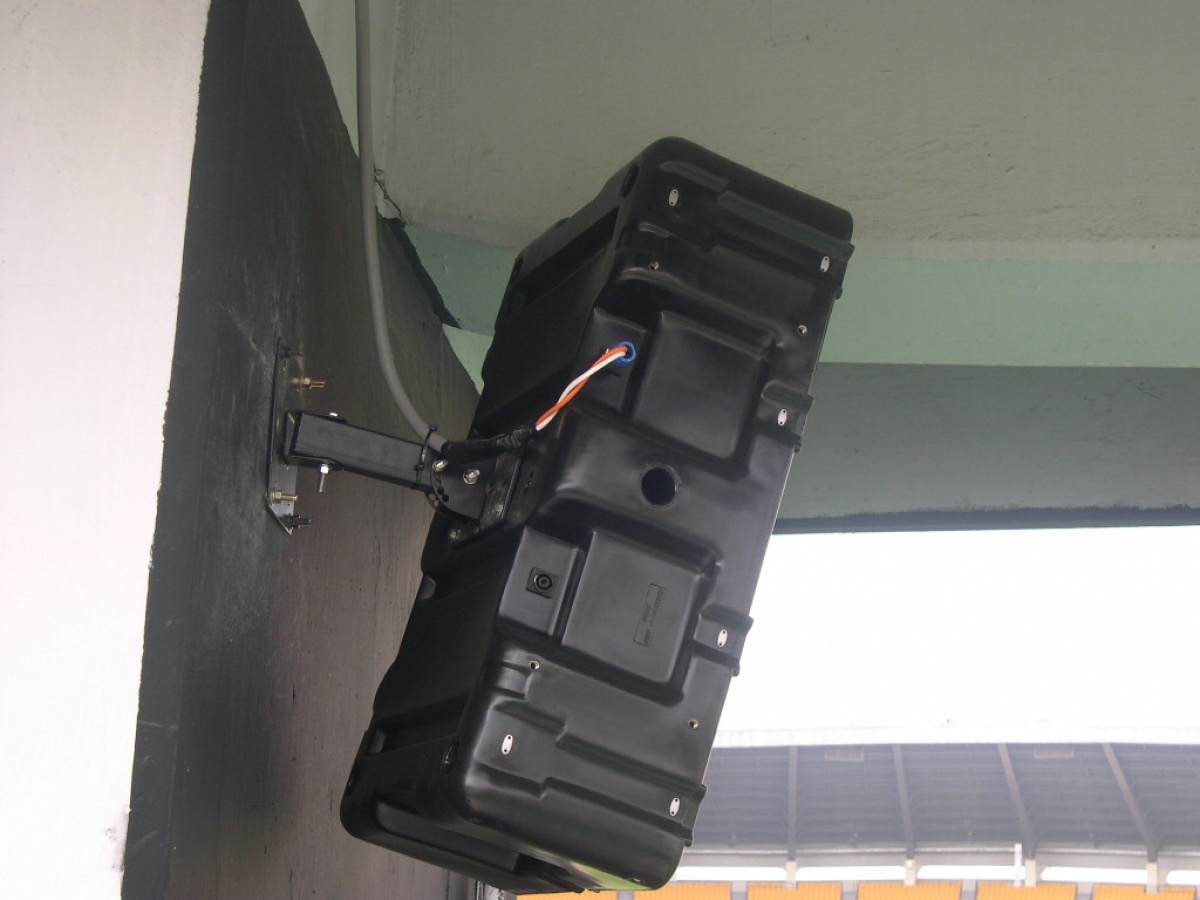

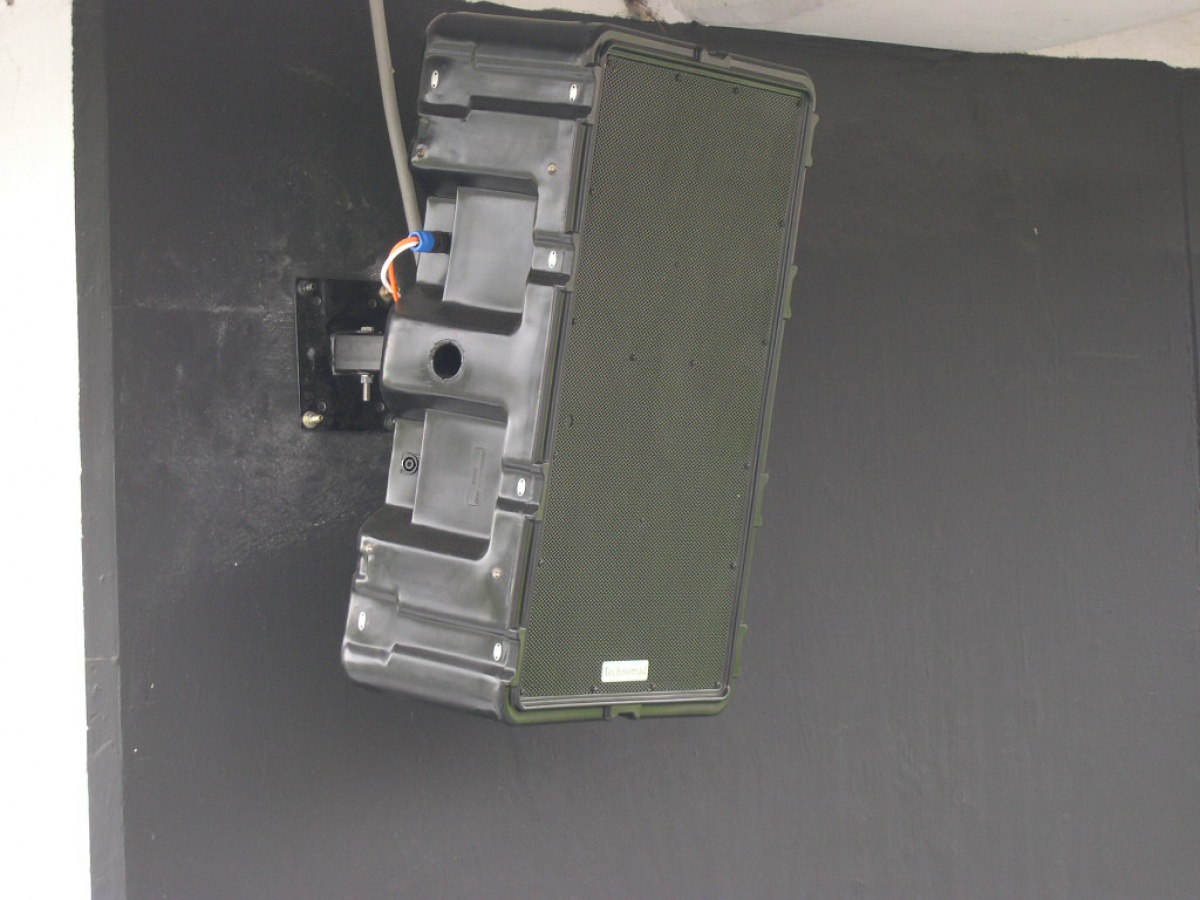

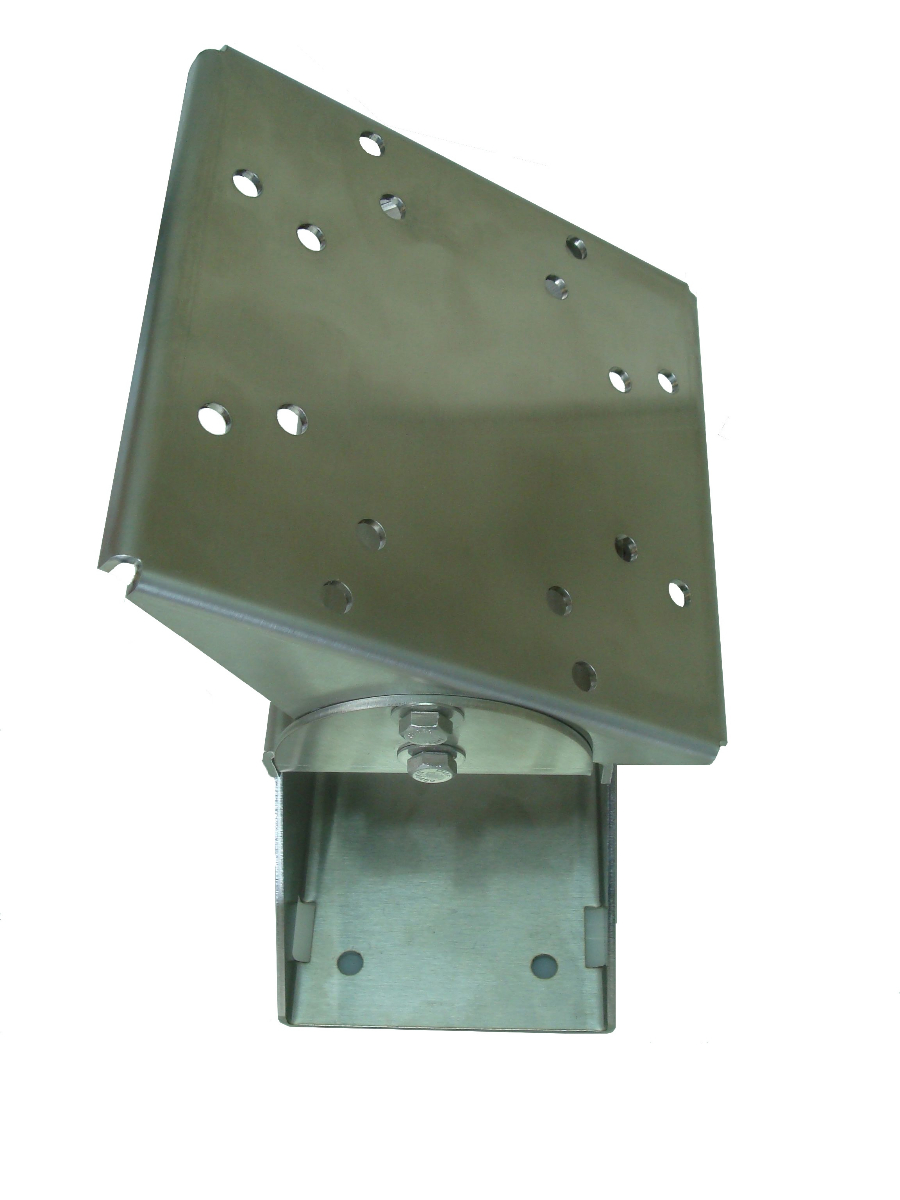

» Wallmount | Pole Mount Bracket
» Yoke Mount
» Monitor Tilt Kit(for floor / ‘wedge’ monitor operation)
» 400-Watt internal 70-volt transformer
» PowerChiton outdoor amplifier

3 comments

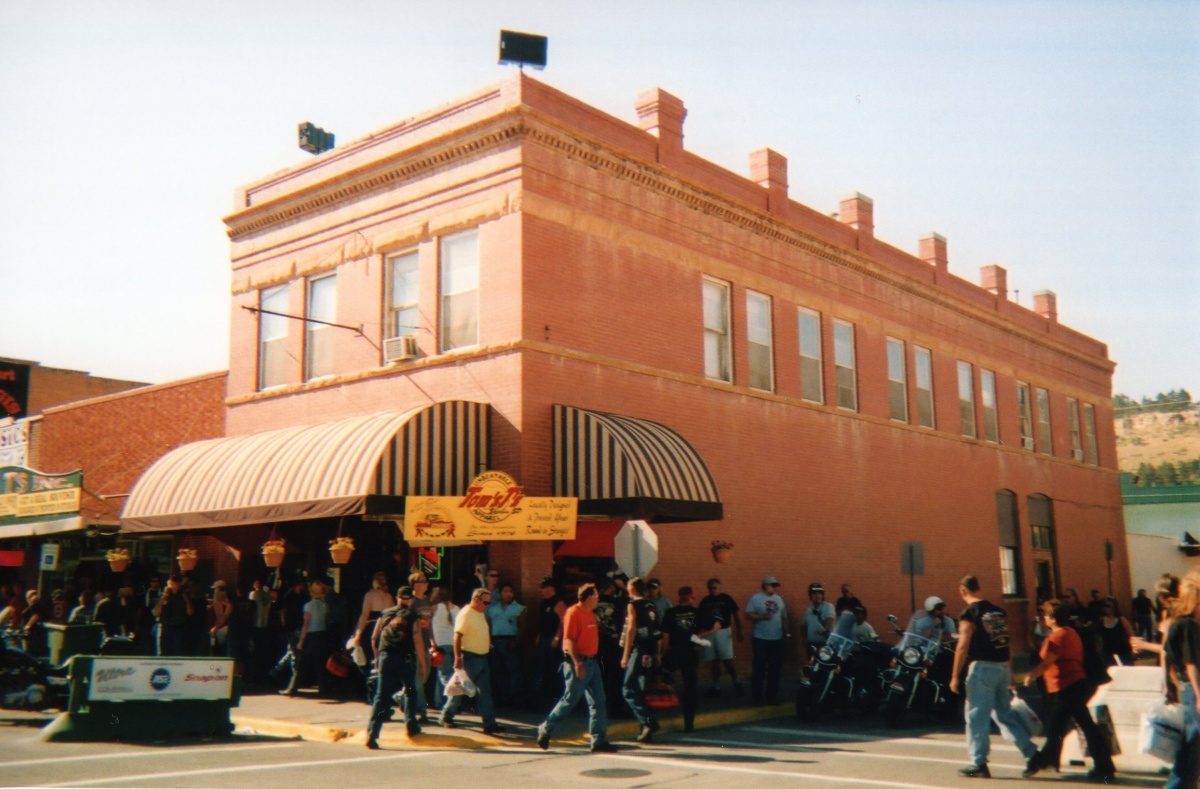

  1. Pingback: Technomad Loudspeakers to Power Through Crowd Noise at Sturgis Motorcycle Rally | Briefing Room on SVConline
